Facial Capture & HMC Systems
We sell and integrate FACEGOOD head-mounted camera systems — the D4 Pro and the SMART P3 — as an authorized reseller.
Body capture tells you where a performer moved. It tells you nothing about what their face did, and the face is where the performance lives. A head-mounted camera rides with the performer and records the face from a fixed distance no matter how they move, so expression is captured on the same take as the body rather than reconstructed afterwards.
Request a Quote

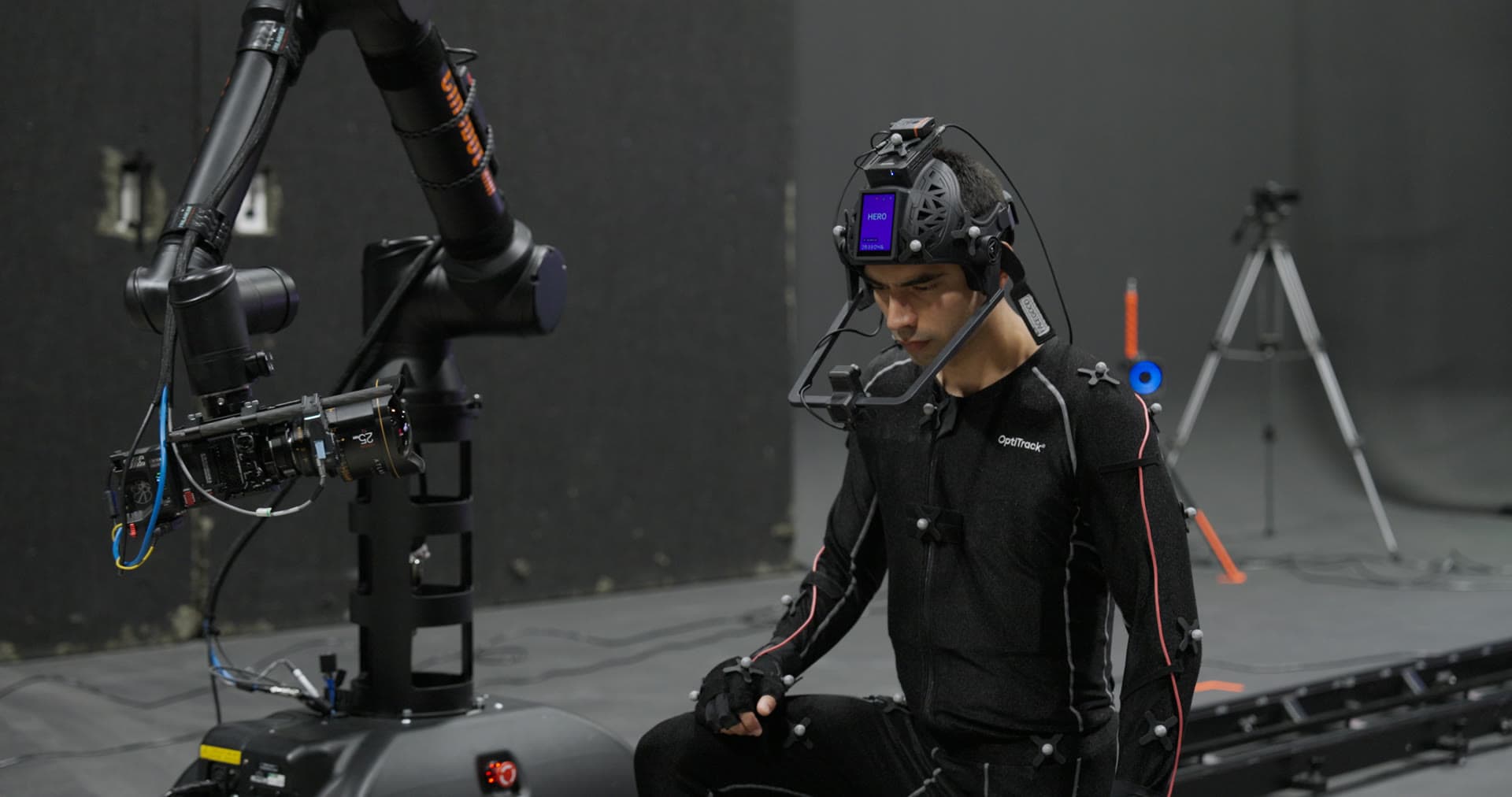

The SMART P3 in use on our own stage.
FACEGOOD Systems We Sell
Two units, and the choice between them is mostly about where the solve happens and how long you need to keep rolling.
FACEGOOD D4 Pro
Stereo Camera System
The volume unit. A stereo HMC that pairs with the LiveDrive Android app for wireless recording and real-time expression capture, and triggers your mocap system automatically over the PeelDev protocol. Light enough for long sessions and priced for kitting out a class, a lab, or a room full of performers.
- ✓Auto-triggers capture over PeelDev — OptiTrack, Vicon, Xsens, Rokoko, Qualisys, PeelCapture and XINGYING
- ✓Wireless recording and live expression solve through the LiveDrive Android app
- ✓Built-in microphone captures reference audio on the same take
- ✓Three timecode routes, so it slots into whatever the rest of the stage is already locked to
- Resolution
- 1280 × 720
- Frame rate
- 60 fps
- Lighting
- 940 nm infrared
- Weight
- ≈500 g
- Dimensions
- 434 × 252 × 208 mm
- Connection
- USB-C, 1 m — wired or wireless
- Audio
- Built-in mono mic, 20 Hz – 20 kHz
- Timecode
- Phone clock, NTP server, or Tentacle Sync over Bluetooth
- Shell
- Polypropylene + 5% POE, sponge-pad lining

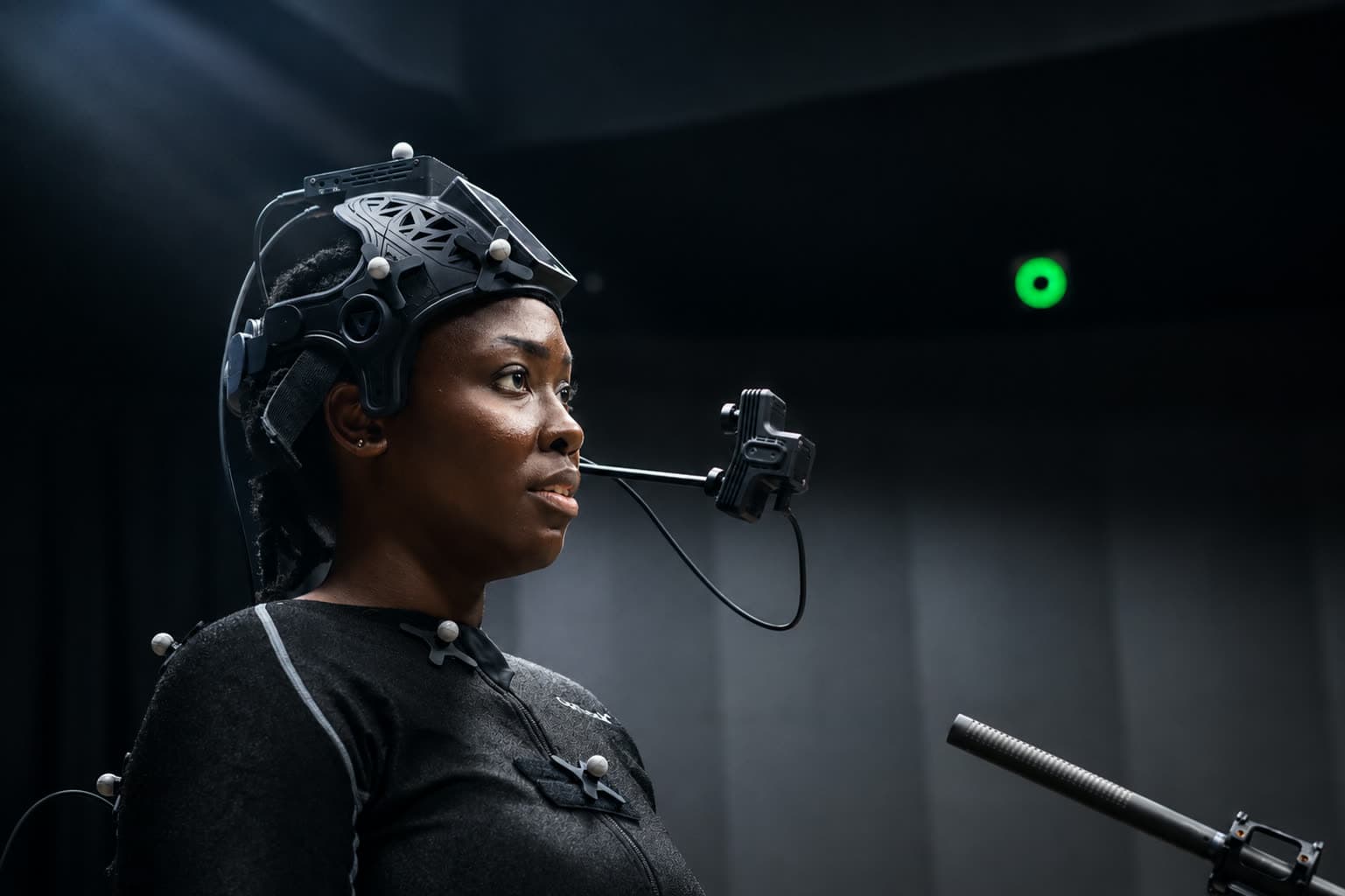

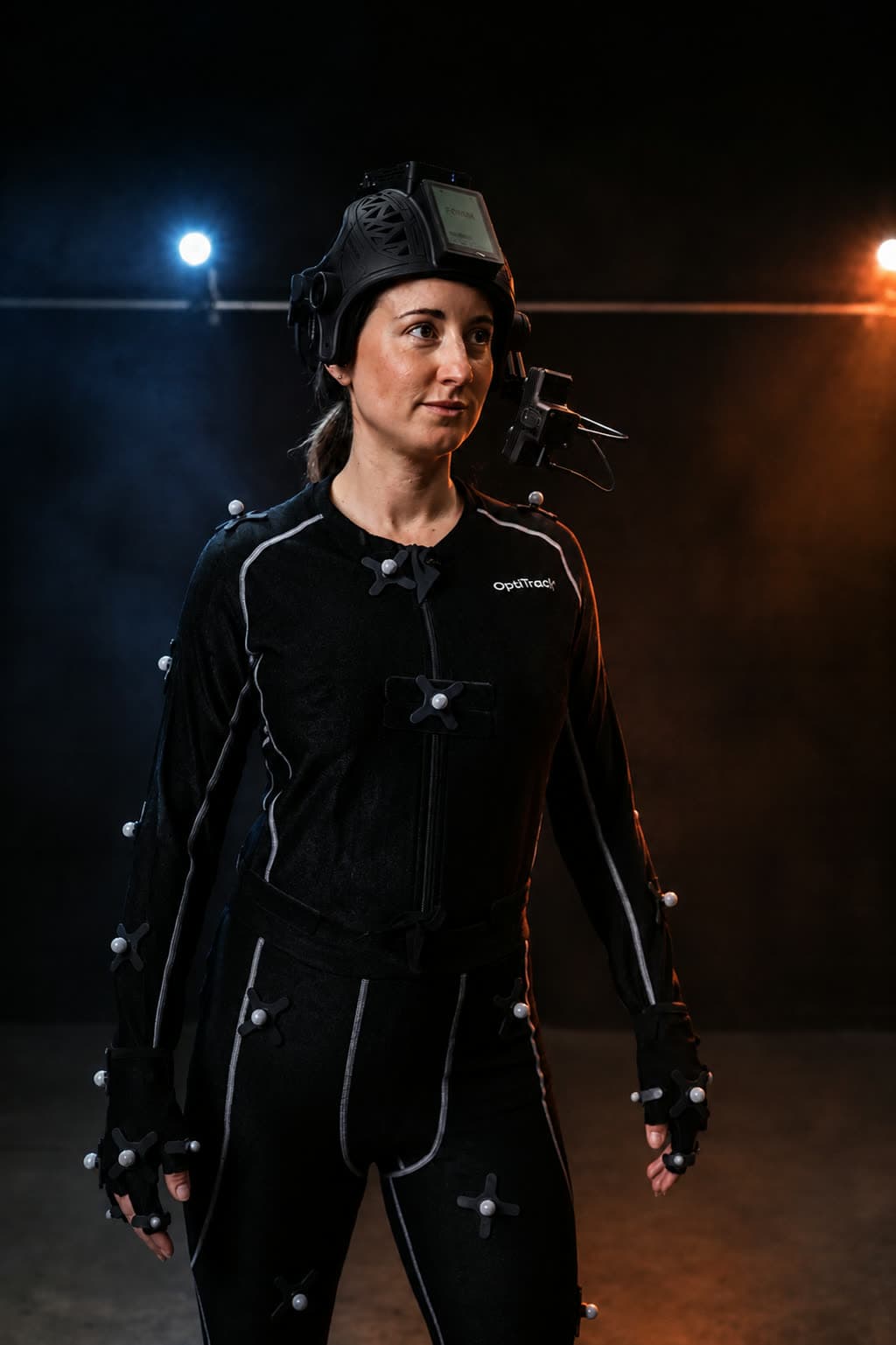

FACEGOOD SMART P3
Stereo-HMC
The flagship. Vertical 4K global-shutter stereo cameras and an onboard emotion-computing chip mean the solve happens in the helmet rather than on a phone — multiple performers in real time, with recording synchronised to it. Built for stages that run all day and cannot stop to swap a battery.
- ✓Onboard emotion-computing chip solves faces in real time, for several performers at once
- ✓Hot-swappable twin batteries give genuinely continuous 24/7 recording
- ✓Fanless design — no device noise on a quiet set or in a recording booth
- ✓Touchscreen control, so the workflow does not need a laptop babysitting it
- ✓Ships with two batteries, charger, calibration board, tool kit and a shockproof case
- Resolution
- 4096 × 1200 (4K global shutter)
- Frame rate
- 60 fps
- Point cloud
- Million-level 3D resolution
- Lighting
- Infrared
- Weight
- ≈720 g
- Dimensions
- 446 × 234 × 237 mm
- Connection
- USB-C
- Display
- 3.5-inch touchscreen
- Timecode
- Internal and external
- Shell
- ABS + aluminium alloy, sponge-pad lining
Figures are from the current FACEGOOD specification sheets and are subject to change by the manufacturer — we confirm them against the datasheet for your configuration before quoting.
Why Buy the Helmet With the Stage
An HMC on its own is a camera on a hat. What makes it useful is everything it has to line up with.
Face and body on one timeline
The reason to buy an HMC from the people who built your stage: the D4 Pro triggers capture over PeelDev on the same systems we install — OptiTrack, Vicon, Xsens, Rokoko and Qualisys. One start, one timecode, one take. Nobody is lining up clips by hand afterwards.
Fitted to the performer, not the box
An HMC that slips mid-take costs more than it saved. We fit the rig, set back-focus and IR exposure for the performer's skin tone and marker style, and check it holds through the range of motion the shoot actually needs.
Calibrated into your pipeline
The helmet is the easy part. We get the solve into what you already run — Unreal, MetaHuman, Maya, or your own rig — so the output arrives as usable animation rather than video you still have to process.
Supported by us
You call us, not an inbox in another time zone. We hold the FACEGOOD relationship, and first-line support for anything we sold and installed comes from the team that installed it.
Need the Body Too?
Facial capture is one channel of a performance. We sell and integrate the optical and inertial systems that capture the rest of it — OptiTrack, Vicon, Xsens, Rokoko and Movin — and the D4 Pro triggers every one of them over PeelDev.
Quoting a FACEGOOD System?
Tell us how many performers you need to capture and what body system they will be wearing, and we'll spec the right unit and the integration around it.
Get Started
